Description

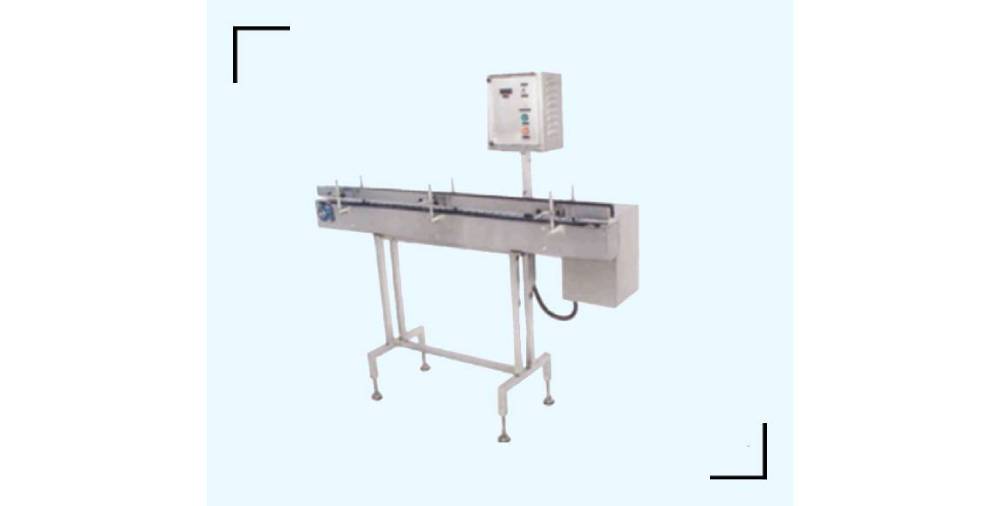

The slat conveyor belt is having stainless steel structure with moving S.S. slat chain of width 3 ½” in the center. Structure made out of S. S. square pipe & supported on adjustable bolts. Is useful to transfer container from one place to another place, without human touch which also reducing manual labors.
Operation
The conveyor belt brings the container from the other machine, these bottles transfer from a machine to another machine with out human touch, adjustable guide provided to set accordingly diameter or width of container.
Technical Specifications
Model |
GSLCB |
|
Direction of Movement** |
Left to right |
|
Speed** |
7.5 Mtr./Min up-to 12 Feet Long |
|
Power Characteristics** |
0.25 HP/220 V/50 Hz up to 12 feet long |
|
Height of Conveyor** |
860 mm to 910 mm |
|
Belt width** |
90 mm |
|
Belt Detail** |
SS Chain, 2.5mm thickness, 1.5” Pitch. |
** We can supply as per customer requirements.
