Description

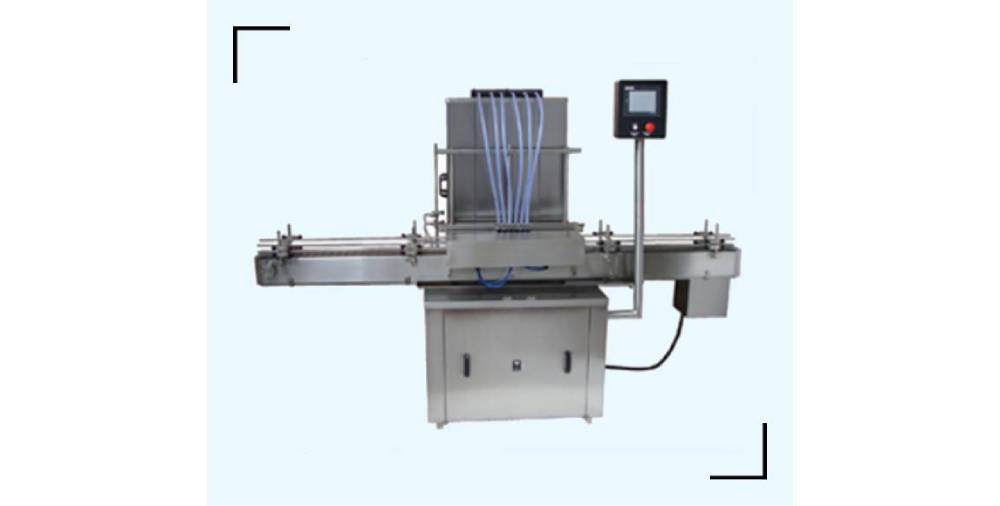

“GMP’s” Automatic ACCUFILL Liquid Bottle Filling Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Machine works on VOLUME=TIME TECHNOLOGY AND SPEED=FLOW RATE. The unit is made compact, versatile and S.S. body. “No container-No filling” system arrangement is standard features of the machine. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body.
Operation
Containers moving on SS Slat conveyor, feed below the filling nozzles through a settable twin pneumatically operated stopper system. The twin pneumatically operated stopper system and reciprocating nozzles can precisely match for centering of container below nozzles, to avoid spillage of liquid on container.
To minimize foaming adjustable nozzle will reciprocate according to filling dose, nozzle will go upwards slowly from bottom level of bottle towards neck during filling. No container No filling system arrangement is standard features of the machine. The main drive of the machine and conveyor drive consist of AC Motor with synchronized variable AC Frequency Drive.
PLC Controller provided to set fill volume, speed of conveyor and set fill timing this means fill size can be easily set.
Technical Specifications
| Model |
ACCUFILL-2HS |
|||
|
Direction of Movement |
Left to Right |
|||
|
Number of head/Syringe |
2 Nozzles & Pumps for 2ml to 10ml 2 Nozzles & Pumps for 20ml to 100ml Total Nozzles & Pump – 4 Nos. |
|||
|
Fill Size |
02ml to 100 ml |
|||
|
Electric Specification ** |
Filling Volume |
0.75 KW / 415Volts / 50 Hz. X 4 Nos. |
||
|
Conveyor |
0.25 HP / 415 Volts / 50 Hz. |
|||
|
Height of Conveyor ** |
860 mm to 910 mm Adjustable. |
|||
Input Specification
|
Container Neck Diameter** |
Minimum 25mm, Maximum 57mm*** |
|||
|
Container Size** |
Round Shape |
Ø 28 mm to Ø 90 mm Respectively height 45 mm to 200 mm |
||
|
Flat / Square |
50mm to 90 mm (Length) Respectively 35mm to 60 mm (Width) Respectively height 75 mm x 200 mm |
|||
*Depends on Container size, fill size, Neck diameter of container, nature of liquid & operator etc.
** We can supply as per customer requirements.
Consumable
Silicon tube (2MM wall thickness)
