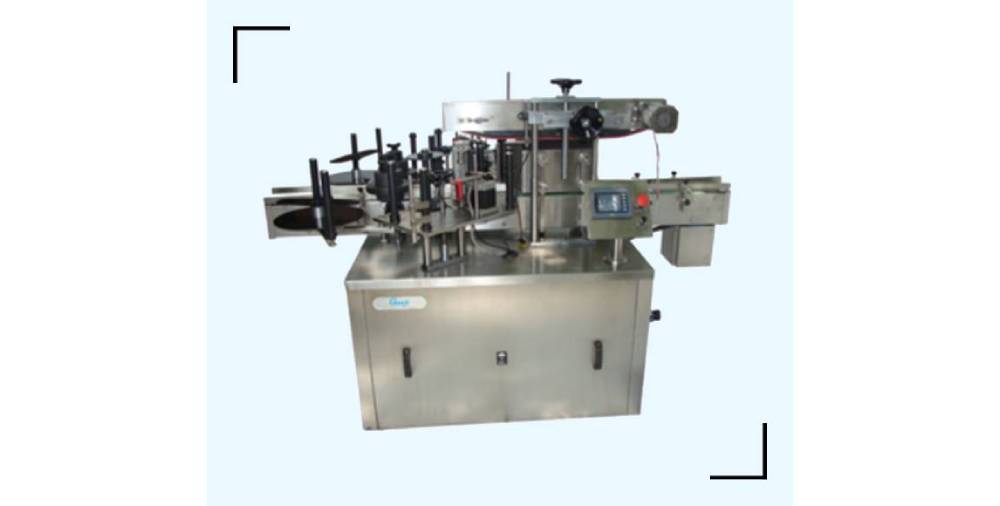

Automatic Self Adhesive Two Side Flat Bottle Labeling Machine

Description

“GMP’s” Automatic Two Side Flat Sticker Labeling Machine is one of the most users friendly. The machine is used for two sides labeling on flat surface of different size of flat container. It is capable to labeling up to 150 containers per minutes depending on products and label size. The automatic model is equipped with belt spacing device.

Operation

The round containers positioned & curate spacing between two containers by the belt spacing device and a belt drive mechanism hold the container from top of the container for two sides labeling on flat container at the labeling point, an electronics product sensor sense container & relies a label from self adhesive label roll. If machine is equipped with batch printing device in that case batch printing device prints the batch no. & other matter on label during label is stationary means time between sensing of two label. The sensed round container moves on conveyor sticker label at labeling point wrapped around to container. Then the labeled container moves further through a rubber pressing belt & stationary rubber pad that ensures neat & perfect fixing of label.

Technical Specifications

Direction of Movement		Left to Right
Output/Hour*		3600 to 9000 Nos.
Electrical Specification**	Conveyor Motor	0.25 HP, 230 Volts, 50 Hz
	Pressing device motor	0.25 HP, 230 Volts, 50 Hz
	Sticker Roll SERVO motor	6V DC X 2 nos.
Height of Conveyor**		860 mm to 910 mm
Machine Dimensions**		2135 mm (L) x 1750 mm (W) x 1450 mm (H)
Case Dimensions		2350 mm (L) x 1950 mm (W) x 1650 mm
Net Weight		450 Kgs.
Gross Weight		750 Kgs.

Salient Features

Optional

Utility Requirement
