Description

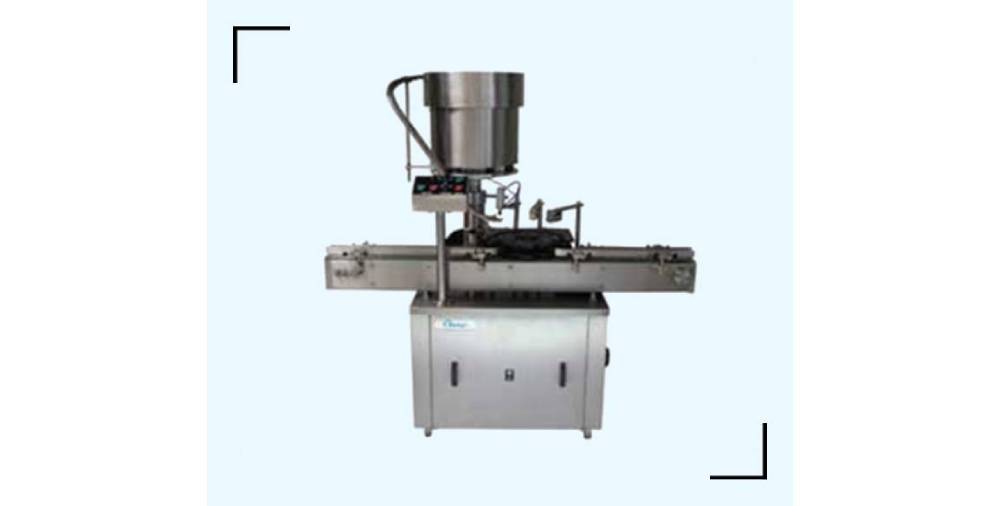

‘GMP’s Automatic Rotary Inner / Measuring / Dozing Cup Placement & Pressing machine is highly efficient machine with elegant look, consists of conveyor, vibrator, feed worm, container holding star plate, & pressing plate. All the exposed parts of the unit are in S.S., chrome platted or cladded with S.S. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine.
Operation
The feed container moving on conveyor belt are feed into an In-feed star wheel through In-feed worm, star wheel bringing the sealed container below the pressing plate, mean while the sealed bottle pickup a cup from the delivery chute of bowl, where the body and the neck of the container are positioned below the pressing plate, where the pressing plate press cup gradually & performing perfect operation of cup pressing.
Technical Specification
Output/Hour* |
3600 to 9000 bottles |
|
Direction of Movement |
Left to Right |
|
Electrical Specification** |
Main Motor |
0.75 HP / 415 Volts / 50 Hz |
Cap Feeding Bowl |
300 Watt Magnetic coil |
|
Height of Conveyor** |
860 mm to 910 mm |
|
Machine Dimensions** |
2135 mm (L) x 1020 mm (W) x 1800 (H) |
|
Case Dimensions |
2250 mm (L) x 1150 mm (W) x 1900 (H) |
|
Net Weight |
500 Kgs. |
|
Gross Weight |
850 Kgs. |
|
Change parts required |
(A) Container: Star Wheel, Back Guide, Feed Worm |
|
Input Specification
|
Dozing Cup Specification |
Diameter** |
19 mm to 38 mm*** |
|
Height ** |
19 to 23 mm |
|
|
Container Size** |
Round Shape |
Ø 22 mm to Ø 100 mm *** Respectively Height 58 mm to 240 mm*** (Height option for other bottle height available) |
|
Flat / Square |
15mm to 100 mm (Length)*** Respectively 10mm to 50 mm (Width)*** Respectively height 58 mm X 240 mm*** (Height option for other bottle height available). |
* Depends on bottle size, cap size and type of cap.
** We can supply as per customer requirements.
*** With help of change parts.
