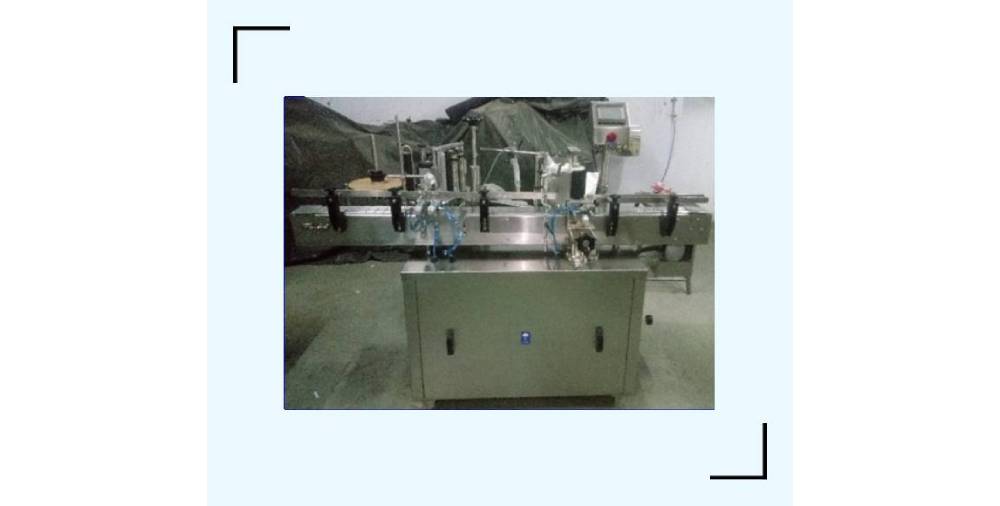

Automatic Self-Adhesive Vertical Labeling Machine pneumatic type (For Round Container) (Gasal-100P)

Description

“GMP’s” Automatic Vertical Sticker Labeling Machine (For Round Container) is one of the most users friendly. The machine is used for full/partial wrap around labeling on different size of round container. It is capable of labeling up to 40 containers per minutes depending on products and label size. The automatic model is equipped with roller spacing device resulting in a simple to “No change parts required”.

Operation

The round containers positioned & curate spacing between two containers by the roller spacing device for wrap-around operation at the operation at the labeling point a pneumatic cylinder hold the container with help of two pressing roller, an electronics product sensor sense container & relies a label from self-adhesive label roll. If machine is equipped with batch printing device in that case batch printing device prints the batch no. & other matter on label during label is stationary means time between sensing of two label. The sensed round container moves on conveyor sticker label at labeling point wrapped around to container.

Technical Specifications

Direction of Movement		Left to Right
Output/Hour*		1500 to 3000 Nos.
Electrical Specification**	Conveyor Motor	0.25 HP, 415/230 Volts, 50 Hz
	Pressing device motor	0.25 HP, 415/230 Volts, 50 Hz
	Sticker Roll SERVO motor	0.75KW, 440V,3 Phase,50Hz
Height of Conveyor**		860 mm to 910 mm
Machine Dimensions**		1835 mm (L) x 600 mm (W) x 1450 mm (H)

Input Specification

Label Specification	Length**	30 mm to 180 mm
	Width **	16 mm to 100 mm
	Roll Diameter	Max. 300 mm X ID 75 mm
	Space between two label	Min. 3 mm in anti clock wise.
Container Size**	Round Shape	Ø 22 mm to Ø 100 mm Respectively height 40 mm to 240 mm (Height option for other bottle height available)

Salient Features

Optional

Utility Requirement
