Description

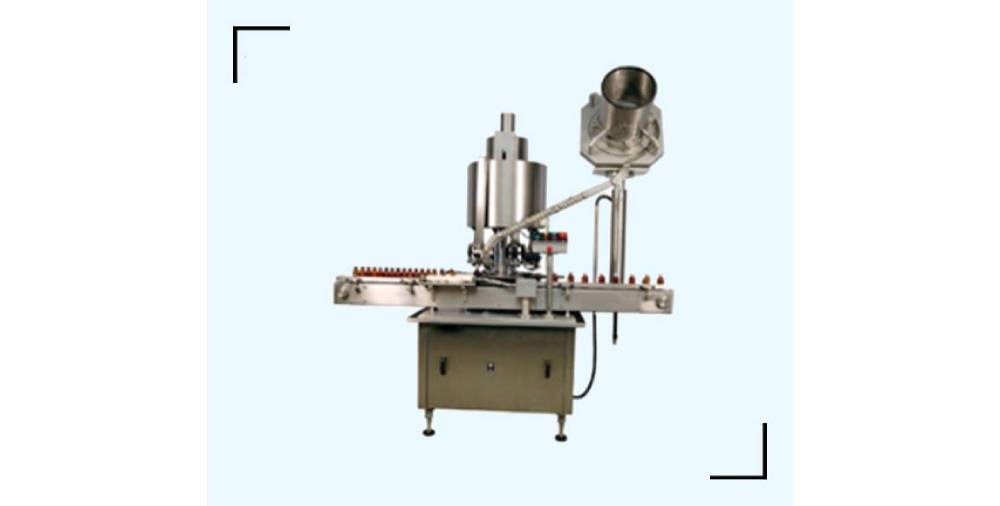

"GMP" Automatic ROCap Sealing Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine.
Operation
The feed container moving on conveyor belt are feed into an infeed star wheel through In-feed worm, star wheel bringing the container below the sealing head in the subsequent indexing part, mean while the bottle pickup a cap from the delivery chute of cap filling bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of threading & sealing.
Technical Specifications
|
Model |
4 HEAD |
6 HEAD |
8 HEAD |
|
|
Output/Hour* |
3600 to 6000 bottles. |
3600 to 9000 bottles |
4000 to 12000 bottles |
|
|
Direction of Movement** |
Left to Right |
|||
|
Number of head/Syringe |
4 Nos. |
6 Nos. |
8 Nos. |
|
|
Electrical Specification** |
Main Motor |
1.5 HP / 415 Volts / 50 Hz. |
2HP / 415 Volts /50Hz. |
|
|
Cap Feeding Bowl |
2HP / 415 Volts /50Hz. |
|||
|
Height of Conveyor** |
860 mm to 910 mm Adjustable. |
|||
* Depends on Container size, fill size, Neck diameter of container, nature of liquid & operator etc.
** We can supply as per customer requirements.
