Discriptions:

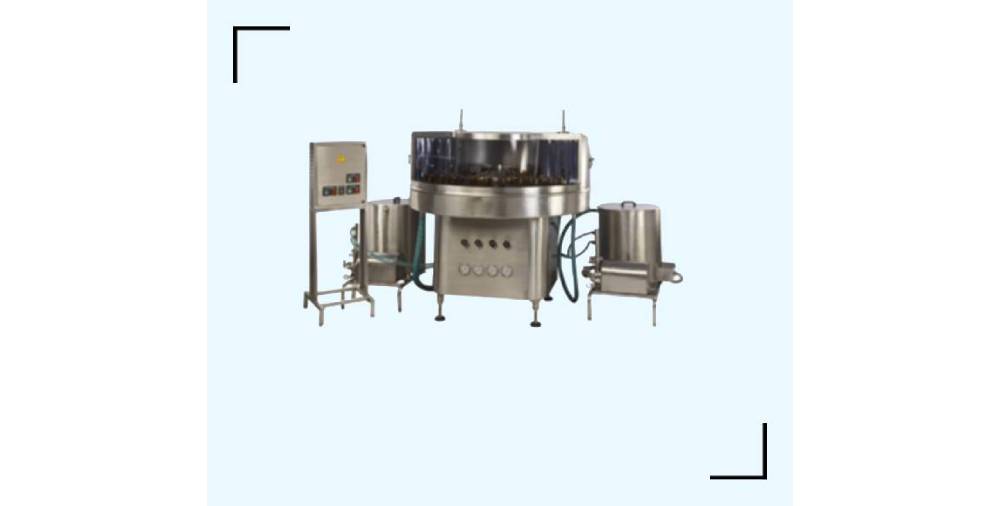

“GMP’s” Rotary Bottle Washing Machine is compact and highly efficient machine with elegant look. This multifunctionalmulti featured machine meets the GMP requirements of washing for glass and plastic bottles. The machine operates on the rotary principle with "GENEVA" mechanism and requires manual loading and unloading of bottles.
Operation
The bottles are loaded on the subsequent indexing part of rotating platform and are cleaned in series of operations. Specially designed bottle holders provided to hold bottles with neck diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings, it also spraying water when bottle are stopped means insure saving of water, and sequence of various washing media to suit specific requirement.
Technical Specifications
Model |
64 Holder |
96 Holder |
|
|
Out put / Hour* |
2600 to 6000 |
4300 to 9000 |
|
|
No .of Container Holder |
64 |
96 |
|
|
Direction of Machine** |
Clock wise |
Clock wise |
|
|
Electrical Specifications** |
Main Motor |
0.5 HP / 415 Volts / 50 Hz |
0.5 HP / 415 Volts / 50 Hz |
|
Pump Two Nos. |
0.5 HP x 2 = 1 HP / 415 Volts / 50 Hz |
0.5 HP x 2 = 1 HP / 415 Volts / 50 Hz |
|
|
Electrical Heater |
3 KW. |
3 KW. |
|
|
Tank Capacity |
75 Ltrs. S.S. 304 (2 Nos.) |
75 Ltrs. S.S. 304 (2 Nos.) |
|
|
Wash Cycle |
4 Inner+1 Outer (Inner wash sequence are inter changeable) |
4 Inner+1 Outer (Inner wash sequence are inter changeable) |
|
|
Working height |
860 to 910 mm |
860 to 910 mm |
|
|
Machine Dimensions (In mm) |
1500 (L) x 1750 (W) x 1300 (H) |
1500 (L) x 1750 (W) x 1300(H) |
|
|
Case Dimension(In mm)Two Case |
Machine |
1600 (L) x 1600 (W) x 1550(H) |
1600 (L) x 1600 (W) x 1550(H) |
|
Tanks |
1550 (L) x 1000 (W) x 1550(H) |
1550 (L) x 1000 (W) x 1550(H) |
|
|
Net Weight |
450 Kgs. |
550 Kgs |
|
|
Gross Weight |
750 Kgs. |
900 Kgs |
|
|
Change parts required |
(A) Neck Dia: Bottle holding pocket. |
(A) Neck Dia: Bottle holding pocket. |
|
* Depends on bottle size.
** We can supply as per customer requirements.
*** With help of change parts.
