Description

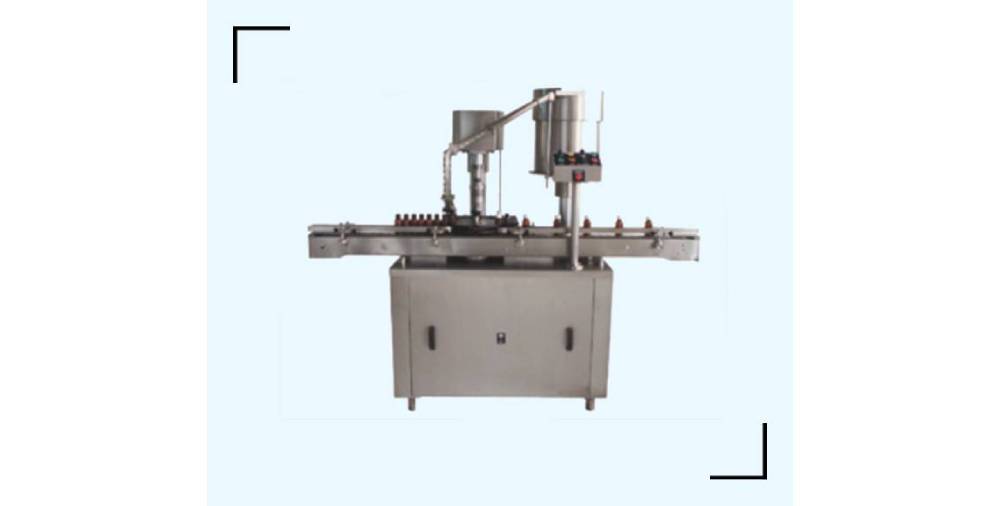

‘GMP’s’Automatic Screw Capping Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine.
Operation
The feed container moving on conveyor belt are feed into an in-feed star wheel, bringing the container below the sealing head in the subsequent indexing part, mean while the rotating head pickup a cap from the cap star wheel which is receiving from delivery chute of cap filling bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of sealing, rotating head is design to seal container according to pre-set torque.
Technical Specifications
|
Model |
4 HEAD |
6 HEAD |
8 HEAD |
|
|
Output/Hour* |
3600 to 6000 bottles |
3600 to 9000 bottles |
4000 to 12000 bottles |
|
|
Direction of Movement |
Left to Right |
Left to Right |
Left to Right |
|
|
No. of sealing head |
4 Nos. |
6 Nos. |
8 Nos. |
|
|
Electrical Specification** |
Main Motor |
1.5 HP / 415 Volts / 50 Hz |
1.5 HP / 415 Volts / 50 Hz |
2 HP / 415 Volts / 50 Hz |
|
Cap Feeding Bowl |
300 Watt. |
300 Watt. |
300 Watt. |
|
|
Height of Conveyor** |
860 mm to 910 mm |
860 mm to 910 mm |
860 mm to 910 mm |
|
|
Machine Dimensions** |
2135 mm (L) x 1120 mm(W) x 2250 (H) |
2135 mm (L) x 1120 mm(W) x 2250 (H) |
2135 mm (L) x 1120 mm(W) x 2250 (H) |
|
|
Case Dimensions |
2650 mm (L) x 1250 mm (W) x 2250 (H) |
2650 mm (L) x 1250 mm (W) x 2250 (H) |
2650 mm (L) x 1250 mm (W) x 2250 (H) |
|
|
Net Weight |
900 Kgs. Approx. |
900 Kgs. Approx. |
1050 Kgs. Approx. |
|
|
Gross Weight |
1250 Kgs. Approx. |
1250 Kgs. Approx. |
1400 Kgs. Approx. |
|
|
Change parts required |
Container: Star Wheel, Back Guide, Feed Worm |
SAME |
SAME |
|
Input Specification
|
Screw Cap Specification |
Diameter** |
22 mm to 56 mm*** |
|
Height ** |
15 to 18.3 mm |
|
|
Container Size** |
Round Shape |
Ø 22 mm to Ø 100 mm *** Respectively Height 40 mm to 240 mm*** (Height option for `other bottle height available) |
|
Flat / Square |
15mm to 100 mm (Length)*** Respectively 10mm to 50 mm (Width)*** Respectively height 40 mm X 240 mm*** (Height option for other bottle height available). |
* Depends on bottle size, cap size and type of cap.
** We can supply as per customer requirements.
*** With help of change parts.
