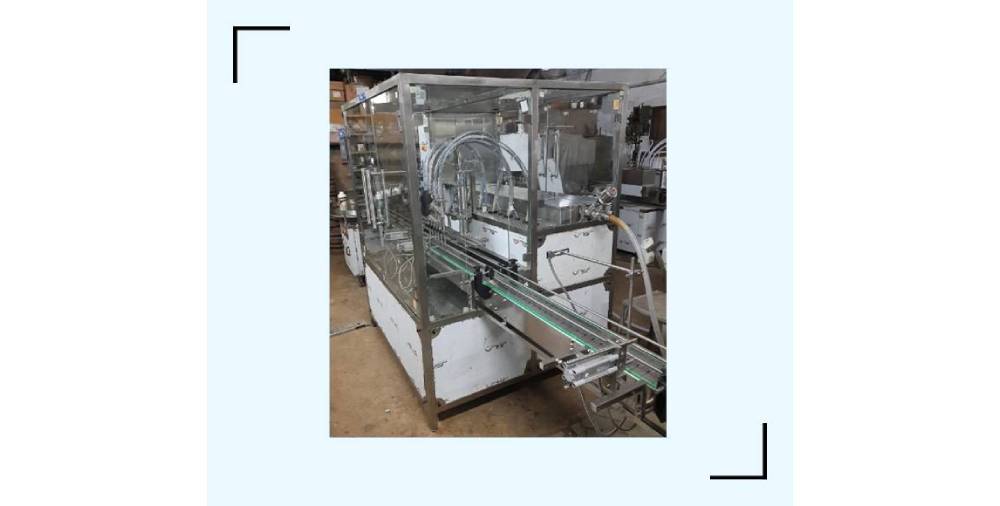

Automatic Viscofill Liquid Bottle Filling Machine

Description

“GMP’s” Automatic VISCOFILL Liquid Bottle Filling Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Machine works on VOLUME=TIME TECHNOLOGY AND SPEED=FLOW RATE. The unit is made compact, versatile and S.S. body. “No container-No filling” system arrangement is standard features of the machine. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body.

Operation

Containers moving on SS Slat conveyor, feed below the filling nozzles through a settable twin pneumatically operated stopper system. The twin pneumatically operated stopper system and reciprocating nozzles can precisely match for centering of container below nozzles, to avoid spillage of liquid on container.

To minimize foaming adjustable nozzle will reciprocate according to filling dose, nozzle will go upwards slowly from bottom level of bottle towards neck during filling. No container No filling system arrangement is standard features of the machine. The main drive of the machine and conveyor drive consist of AC Motor with synchronized variable AC Frequency Drive.

The two knobs provided to set fill volume; this means fill size can be easily set.

Technical Specifications

Model		VISCOFILL™ 2HS	VISCOFILL™ 4HS	VISCOFILL™ 6HS	VISCOFILL™ 8HS
Output/Hour*		Up to 3000 Nos.	Up to 5000 Nos.	Up to 7200 Nos.	Up to 9000 Nos.
Direction of Movement		Left to Right	Left to Right	Left to Right	Left to Right
Number of head/Nozzle		2 Nozzles	4 Nozzles	6 Nozzles	8 Nozzles
Fill Size		5 ml to 5000ml	5 ml to 5000ml	5 ml to 5000ml	5 ml to 5000ml
Electric Specification **	Filling Section	0.7 KW / 415Volts / 50 Hz. X 2 Nos.	3.00 KW / 415Volts / 50 Hz. X 4 Nos.	3.00 KW / 415Volts / 50 Hz. X 6 Nos.	3.00 KW / 415Volts / 50 Hz. X 8 Nos.
	Conveyor	0.5 HP / 415 Volts / 50 Hz.	0.5 HP / 415 Volts / 50 Hz.	0.5 HP / 415 Volts / 50 Hz.	0.5 HP / 415 Volts / 50 Hz.
Height of Conveyor **		860 to 910 mm Adjustable.	860 to 910 mm Adjustable.	860 to 910 mm Adjustable.	860 to 910 mm Adjustable.

Input Specification

Container Neck Diameter**		Minimum 25 mm , Maximum 57mm***
Container Size**	Round Shape	Ø 28 mm to Ø 90 mm Respectively height 45 mm to 240 mm
	Flat / Square	50mm to 125 mm (Length) Respectively 35mm to 60 mm (Width) Respectively height 75 mm x 275 mm
