Description

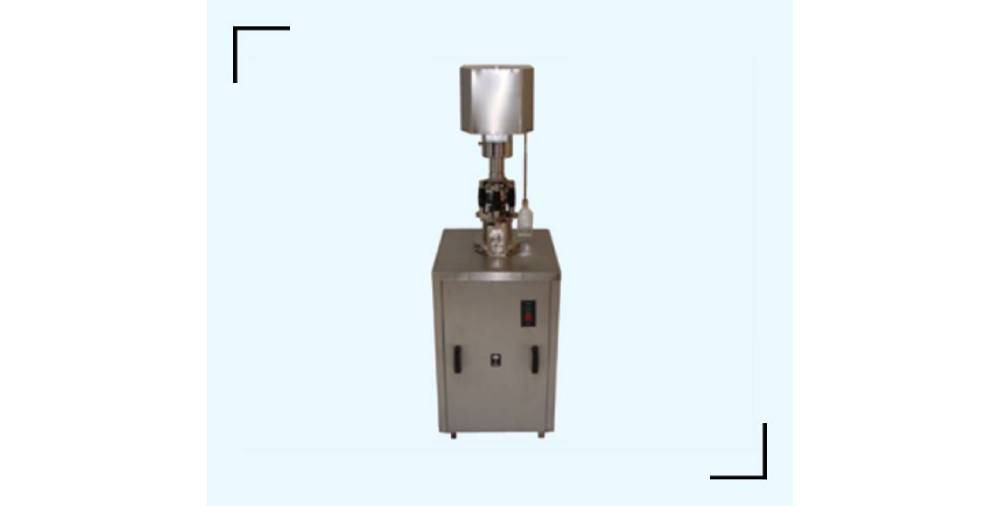

“GMP’s” Automatic Cap Sealing Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Machine is motorized incorporating rotating threading & sealing rollers, for threading & sealing of ROPP cap.
Operation
Require manually feeding & unloading container, where the body and the neck of the container are positioned below the rotating head, and sealing head is performing perfect operation of threading & sealing.
Technical Specifications
|
Output/Hour* |
1000 to 2400 Containers. |
|
No. of sealing head |
1 Nos. |
|
Electrical Motor** |
0.5 HP / 440 Volts / 3 Phase / 50 Hz (Four wire) For Main Machine. |
|
Overall Dimension |
435 mm (L) x 590 mm (W) x 1300 (H) Approx. |
|
Case Dimension |
650 mm (L) x 800 mm (W) x 1500 (H) Approx. |
|
Net Weight |
170 Kgs. Approx. |
|
Gross Weight |
350 Kgs. Approx. |
|
Change parts required |
Cap Die if cap diameter change. |
Input Specification
|
ROPP Cap Specification |
Diameter** |
19 mm to 38 mm*** |
|
Height ** |
15 to 18.3 mm |
|
|
Container Size** |
Round Shape |
Ø 22 mm to Ø 100 mm *** Respectively Height 58 mm to 240 mm*** (Height option for other bottle height available) |
|
Flat / Square |
15mm to 100 mm (Length)*** Respectively 10mm to 50 mm (Width)*** Respectively height 58 mm X 240 mm*** (Height option for other bottle height available). |
* Depends on bottle size, cap size and type of cap.
** We can supply as per customer requirements.
