Description

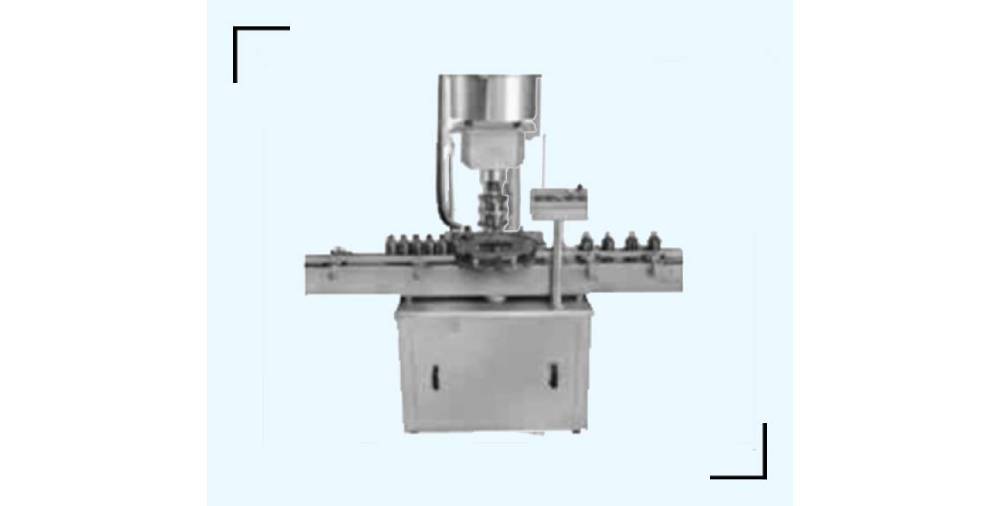

“GMP’s” Automatic ROPP Cap Sealing Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine.
Operation
The feed container moving on conveyor belt are fed into star wheel, bringing the container below the sealing head in the subsequent indexing part, mean while the bottle pickup a cap from the delivery chute of cap feeding bowl, where the body and the neck of the container are positioned below the rotating head. Where the sealing head is performing perfect operation of threading & sealing.
Technical Specifications
|
Output/Hour* |
1000 to 3000 bottles. |
|
|
Direction of Movement |
Left to Right. |
|
|
No. of Sealing Head |
1 Nos. |
|
|
Electrical Specification** |
Main Motor |
1 HP / 415 Volts / 50 Hz. |
|
Cap Feeding Bowl |
300 Watt, Magnetic coil. |
|
|
Height of Conveyor** |
860 mm to 910 mm. |
|
|
Machine Dimensions** |
1525 mm (L) x 850 mm (W) x 1900 (H) Approx. |
|
|
Case Dimensions |
1750 mm (L) x 1100 mm (W) x 2250 (H) Approx. |
|
|
Net Weight |
350 Kgs. Approx. |
|
|
Gross Weight |
550 Kgs. Approx. |
|
|
Change parts required |
(A) Container: Star Wheel, Back Guide, Feed Worm. |
|
Input Specification
|
ROPP Cap Specification |
Diameter** |
19 mm to 38 mm*** |
|
Height ** |
15 to 18.3 mm |
|
|
Container Size** |
Round Shape |
Ø 22 mm to Ø 100 mm *** Respectively Height 58 mm to 240 mm*** (Height option for other bottle height available) |
|
Flat / Square |
15mm to 100 mm (Length)*** Respectively 10mm to 50 mm (Width)*** Respectively height 58 mm X 240 mm*** (Height option for other bottle height available). |
* Depends on Container size, fill size, Neck diameter of container, nature of liquid & operator etc.
** We can supply as per customer requirements.
