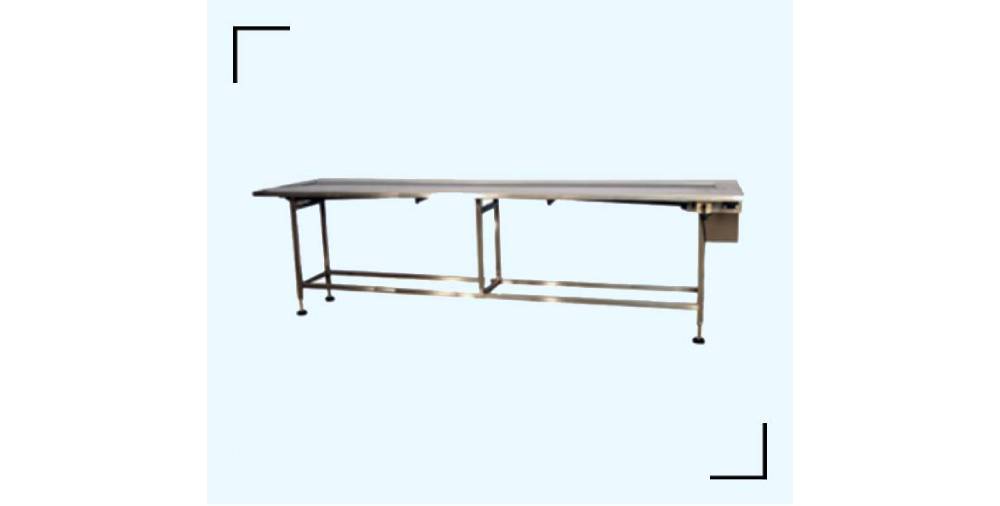

“GMP’s” Packing conveyor belt is having stainless steel Table Top with moving Endless sandwich belt in the center. Tabletop is fixed to the same structure made out of SS square pipe & supported on adjustable bolts. Tabletop is of 12 inches working space on both side of the conveyor belt for final visual inspection & packing into the box.
Operation
The conveyor belt brings the container or products from the labeling/blister/strip machine, These bottles/products operators in turn pick up the bottles/products & visually inspect the bottles/products & doing necessary action like primary packing, secondary packing, picking & placing at proper place.
Technical Specifications
|
Direction of Movement |
Left to Right |
|
|
Speed |
7.5 Mtr. / Min upto 12 Feet Long |
|
|
Power Characteristics** |
0.25 HP/220 V/50 Hz up to 12 feet long |
|
|
Height of Conveyor** |
860 mm to 910 mm |
|
|
Belt width** |
9” or 12” as per requirement. |
|
|
Belt Detail** |
PVC, endless 2 ply sandwich, 2 mm thickness. |
|
|
Machine Dimensions** |
9” width belt |
As per requirements (L) x 830 mm (W) x 910 mm (H) |
|
12” width belt |
As per requirements (L) x 900 mm (W) x 910 mm (H) |
|
|
Case dimensions |
9” width belt |
As per requirements (L) x 1050 mm (W) x 1150 mm (H) |
|
12” width belt |
As per requirements (L) x 1100 mm (W) x 1150 mm (H) |
|
|
Net weight |
Depend on length. |
|
|
Gross Weight |
Depend on length |
|
** We can supply as per customer requirements.
