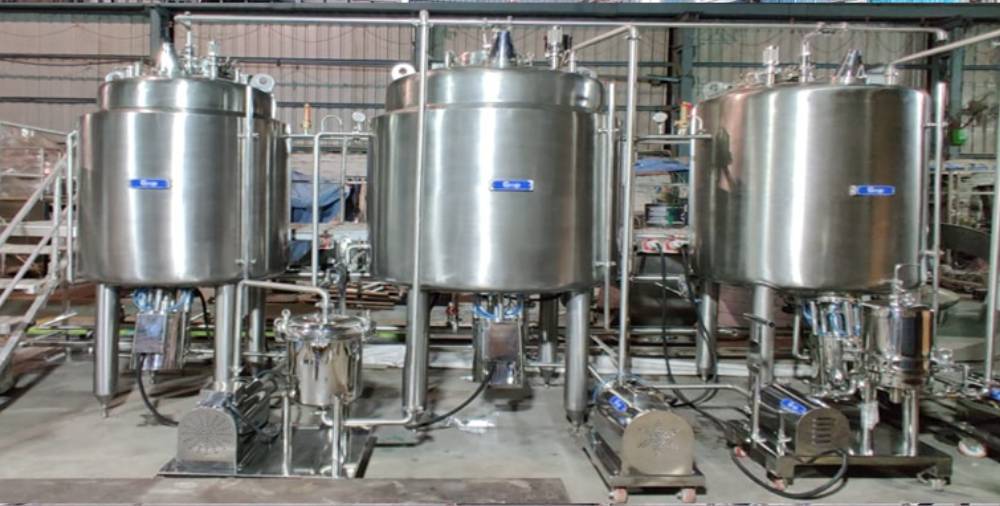

Automatic Liquid SYRUP Manufacturing Plant

single-img-nine
Description

GMP Automatic Liquid Manufacturing Plant is made as per WHO & US FDA standards to manufacture Syrup / Suspension / oral / external liquid for pharmaceuticals. This is a completely closed vessel with agitator mounted on top / Bottom dome. The vessel will be available with different accessories for different applications i.e. standard stirrer / magnetic stirrer / as required by the customers.

The liquid manufacturing plant consists of :
  • Sugar syrup vessel.
  • Online sugar syrup pre-filter.
  • Manufacturing vessel storage vessel
  • Vacuum system for transfer of sugar and sugar syrup.
  • Product piping.
  • Control panels.
  • Transfer pumps.
Unique features of oral liquid manufacturing plant are:
  • All the vessels are interconnected with pipeline and the process is fully automatic, untouched with Electrical / PLC Control.
  • CIP/SIP available.
  • The oral liquid manufacturing plant is designed to be operated by one operator and one helper, saving on precious man- power cost
  • Sugar syrup is transferred to manufacturing vessel through online sugar syrup prefilter.
  • Entry of all propeller agitations are from bottom / Top through a specially designed seal face.
  • Pipes, pipe fittings and various are of SS 316, seamless, internally electropolsihed with DIN standard unions and silicon gaskets.
Capacity
  • From 500 litres To 3000 litres.
  • Steam / Electrical Heated
