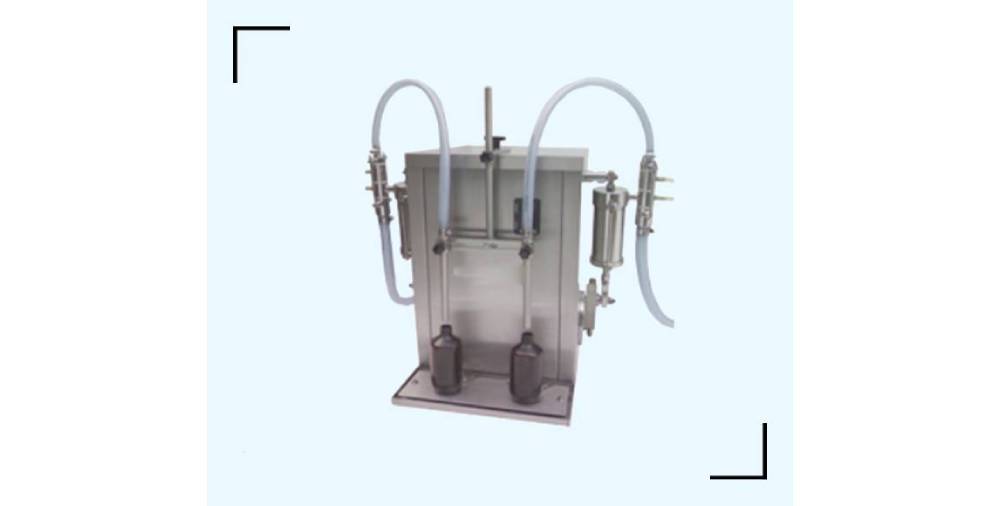

Semi Automatic Volumetric Filling Machine 1/2 Heads

Description

‘GMP’s’ Semi Automatic Volumetric Liquid Filling Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Working on volumetric principle. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body.

Operation

Containers have to place manually below the filling nozzles at platform of machine. Where motor operated syringes fill desire pre set volume in container, bottle guide are provide for precisely match for centering of container below nozzles, to avoid spillage of liquid on container. The dosing block with a hexagonal bolt fitted below syringes. This means fill size can be easily set.

Technical Specifications

Output/Hour	700 to 2400*
Number of head/Syringe	2 Nos.
Fill Size***	5 ml to 1000 ml
Electric Specification **	0.5 HP / 415Volts / 50 Hz. (Main Machine) (1 HP if maximum volume is 1000ml in single doze)
Machine Dimensions**	915 mm (L) x 690 mm (W) x 815 mm (H)
Case Dimensions	1100 mm (L) x 900 mm (W) x 1050 mm (H)
Net Weight	120 Kgs.
Gross Weight	310 Kgs.
Change parts required	(A) Syringes. (B) Nozzle (C) Inlet & outlet hose pipe.

Input Specification

Container Neck Diameter**		Minimum 22 mm ***
Container Size**	Round Shape	Ø 28 mm to Ø 100 mm Respectively height 58 mm to 240 mm (Height option for other bottle height available)
	Flat / Square	15mm to 100 mm (Length) Respectively 10mm to 50 mm (Width) Respectively height 58 mm X 240 mm (Height option for other bottle height available)
