Description

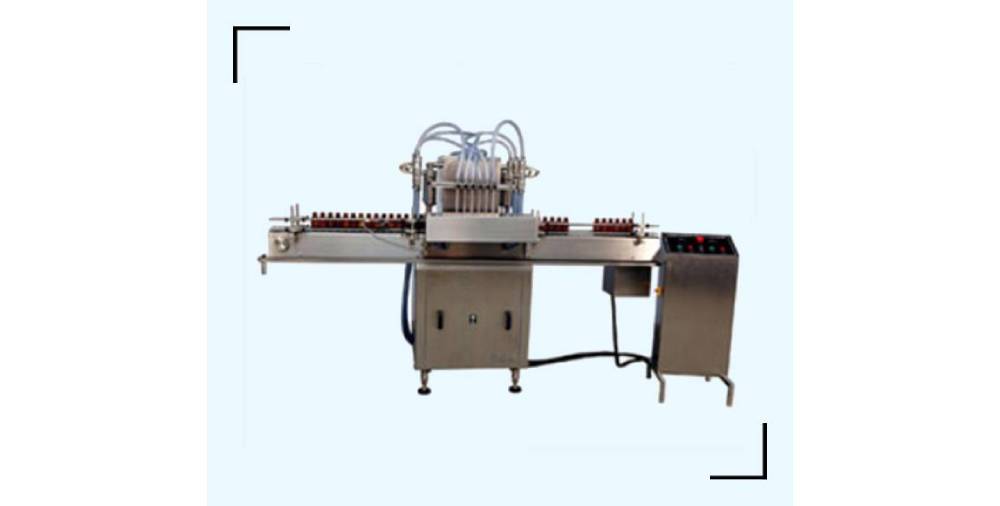

‘GMP’s’ Automatic Volumetric Liquid Bottle Filling Machine work on volumetric principle with diving nozzles. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body, consists of S.S. Slat Conveyor, Reciprocating Nozzle with self-centering devices & SS Syringe. No container No filling system arrangement is standard features of the machine.The main drive of the machine and conveyor drive consist of A/c Motor with synchronized variable A/c Frequency Drive.
Technical Specifications
Model |
4 HEAD |
6 HEAD |
8 HEAD |
|
|
Output/Hour* |
2400 to 6000 |
3600 to 9000* |
5000 to 12000* |
|
|
Direction of Movement |
Left to Right |
Left to Right |
Left to Right |
|
|
Number of head/Syringe |
4 Nos. |
6 Nos. |
8 Nos. |
|
|
Fill Size*** |
5 ml to 1000 ml |
5 ml to 1000 ml |
5 ml to 1000 ml |
|
|
Electric Specification ** |
Main Machine |
1.5 HP / 415Volts / 50 Hz. (1.5 HP if maximum volume is 1000ml in single doze) |
1.5 HP / 415Volts / 50 Hz. (2 HP if maximum volume is 1000ml in single doze) |
1.5 HP / 415Volts / 50 Hz. (1.5 HP if maximum volume is 1000ml in single doze) |
|
Conveyor |
0.5 HP / 415 Volts / 50 Hz. |
0.5 HP / 415 Volts / 50 Hz. |
0.5 HP / 415 Volts / 50 Hz. |
|
|
Height of Conveyor ** |
860 mm to 910 mm Adjustable. |
860 mm to 910 mm Adjustable. |
860 mm to 910 mm Adjustable. |
|
|
Machine Dimensions** |
2135 mm (L) x 1150 mm (W) x 1610 mm (H) |
2135 mm (L) x 1150 mm (W) x 1610 mm (H) |
2135 mm (L) x 1350 mm (W) x 1610 mm (H) |
|
Case Dimensions |
2350 mm (L) x 1350 mm (W) x 1650 mm (H) |
2350 mm (L) x 1350 mm (W) x 1650 mm (H) |
2350 mm (L) x 1350 mm (W) x 1650 mm (H) |
|
|
Net Weight |
600 Kgs. |
700 Kgs. |
850 Kgs. |
|
|
Gross Weight |
850 Kgs |
950 Kgs. |
1100 Kgs. |
|
|
Change parts required |
(A) Syringes (B) Nozzle (C) Inlet and outlet hose pipe. |
(A) Syringes (B) Nozzle (C) Inlet & outlet hose pipe. |
(A) Syringes (B) Nozzle (C) Inlet & outlet hose pipe. |
|
* Depends on Container size, fill size, Neck diameter of container, and nature of liquid etc.
** We can supply as per customer requirements.
*** With help of change parts.
