Discriptions

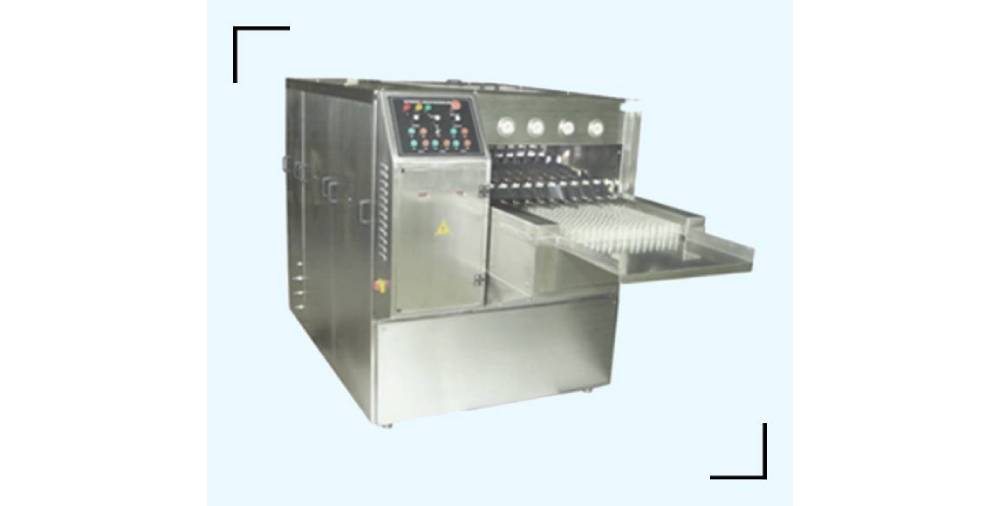

“GMP’s” High Speed Linear Bottle Washing Machine is most ideal for Round Bottles and finds wide application in PHARMA, FOOD & BEVERAGES INDUSTRIES. The automatic loading arrangement facilities loading of bottles on to SS wire mesh conveyor through feed conveyor or bottles are pushed manually from feed table. This saves manpower as bottles are feed into pockets automatically. The automatic unloading mechanism consists of unloading bottle continues on to turn table (Optional).
Technical Specifications
| Model | 100 BPM | 150 BPM | 250 BPM | |
| Out put / Hour* | 6000 bottles | 9000 bottles | 12000 bottles | |
| No. of Pocket Across | 10 | 12 | 20 | |
| Electrical Specifications** | Main Motor | 1 HP / 415 Volts / 50 Hz | 1 HP / 415 Volts / 50 Hz | 1 HP / 415 Volts / 50 Hz |
| Pump Two Nos. | 1 HP x 2 = 2 HP / 415 Volts / 50 Hz | 1 HP x 2 = 2 HP / 415 Volts / 50 Hz | 1 HP x 2 = 2 HP / 415 Volts / 50 Hz | |
| Electrical Heater | 3 KW. | 3 KW. | 3 KW. | |
| Conveyor | 0.5 HP / 415 Volts / 50 Hz | 0.5 HP / 415 Volts / 50 Hz | 0.5 HP / 415 Volts / 50 Hz | |
| Tank Capacity | 80 Ltrs. S.S. 316 | 80 Ltrs. S.S. 316 | 80 Ltrs. S.S. 316 | |
| Wash Cycle | 3 Inner + 1 Outer + 1 Air | 3 Inner + 1 Outer + 1 Air | 3 Inner + 1 Outer + 1 Air | |
| Cycle Timing | 3.5 Second for each wash + 1.5 second for traveling. | 3.5 Second for each wash + 1.5 second for traveling. | 3.5 Second for each wash + 1.5 second for traveling. | |
| Water / Air Consumptions | 400 Ltrs. / Hr / Cycle / Pressure 2.5 Kg @ 20 CFM | 400 Ltrs. / Hr / Cycle / Pressure 2.5 Kg @ 20 CFM | 400 Ltrs. / Hr / Cycle / Pressure 2.5 Kg @ 20 CFM | |
| Machine Dimensions (In mm) | 1150 x 2500 x 1550 | 1450 x 2500 x 1550 | 2900 x 2500 x 1130 | |
| Case Dimensions (In mm) | 1400 x 3000 x 2000 | 1900 x 3000 x 2000 | 3300 x 2500 x 2000 | |
| Net Weight | 1400 Kgs | 1600 Kgs | 2400 Kgs | |
| Gross Weight | 2000 Kgs | 2200 Kgs | 3000 Kgs | |
| Change parts required | (A) Neck Dia. Bottle holding pocket. (B) Flat Container Size: Delivery chute. |
(A) Neck Dia. Bottle Holding pocket. (B) Flat Container Size: Delivery chute. |
(A) Neck Dia. Bottle holding pocket. (B) Flat Container Size: Delivery chute. |
|
* Depends on bottle size.
** We can supply as per customer requirements.
*** With help of change parts
Operation
Three-cycle rinsing allows flexibilities of various wash cycles such as fresh water, dematerialized water etc. as per the rinsing requirement of bottle. All the pumps are made of SS and all the water contact parts are made of SS 316 on a heavy base of SS structure.
In tunnel design is such that separation is maintained between feeding zone and discharge zone of the cleaned containers. All the mechanical drives are separated and isolated from the washing zone. Approved materials only are used for construction, together with a careful choice of components, thereby taking in to consideration all aspects of sanitation and consequence complying with the pharmaceutical G.M.P. requirements.
The quality of rinsing is ensured through 3 sets of inner and 2 sets of outer nozzles accurately placed to direct the jet at center of the bottle and the bottle comes out with water totally drained with minimum droplets of water.
| Container Size** | Round Shape | (A) Ø 30 mm to Ø 65 mm *** (B) 58 mm to 190 mm*** (Height option for other bottle height available) (C) 20 to 55 Neck Diameter*** |
||
| Flat / Square | (A) 30 mm to 100 mm (Length)*** (B) 10 mm to 50 mm (Width)*** (C) 58 mm X 190 mm (Height option for other bottle height available) |
|||
