Description

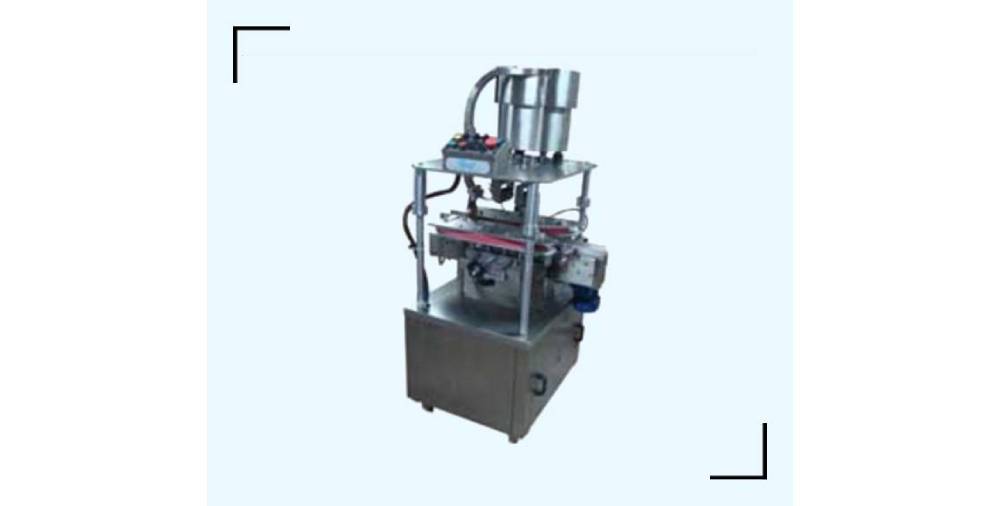

‘GMP’s’Automatic Measuring / Dozing Cup Placement & Pressing machine is highly efficient machine with elegant look, consists of conveyor, vibrator, feed worm, container holding star plate, & pressing plate. All the exposed parts of the unit are in S.S., chrome platted or cladded with S.S. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine.
Operation
The feed container moving on conveyor belt are fed into star wheel, bringing the container below the Pneumatic Cylinder (Pressing Device) in the subsequent indexing part, mean while the bottle pickup a cap from the delivery chute of cap feeding bowl, where the body and the neck of the container are positioned below the pressing roller. Where the pressing roller is performing perfect operation of pressing.
Technical Specification
|
Output/Hour* |
3500 to 4000 bottles |
|
|
Direction of Movement |
Left to Right |
|
|
Electrical Specification** |
Main Motor |
0.50 HP / 415 Volts / 50 Hz |
|
Cap Feeding Bowl |
300 Watt Magnetic coil |
|
|
Height of Conveyor** |
860 mm to 910 mm |
|
|
Machine Dimensions** |
1525 mm (L) x 1000 mm (W) x 1712 (H) Approx |
|
|
Net Weight |
300 Kgs. |
|
